Configure the Event Function

Let us now configure the event function Cliq_Notifier, which automatically sends a message to a Zoho Cliq channel. This message will include the invoice details of new customers who have successfully completed their payment. The function will be executed when it is triggered by Catalyst Signals.

The functions directory, functions/Cliq_Notifier contains:

• The main.py main function file
• The catalyst-config.json configuration file
• The requirements.txt file to mention any external libraries that you might add.

You will be adding code in the main.py file.

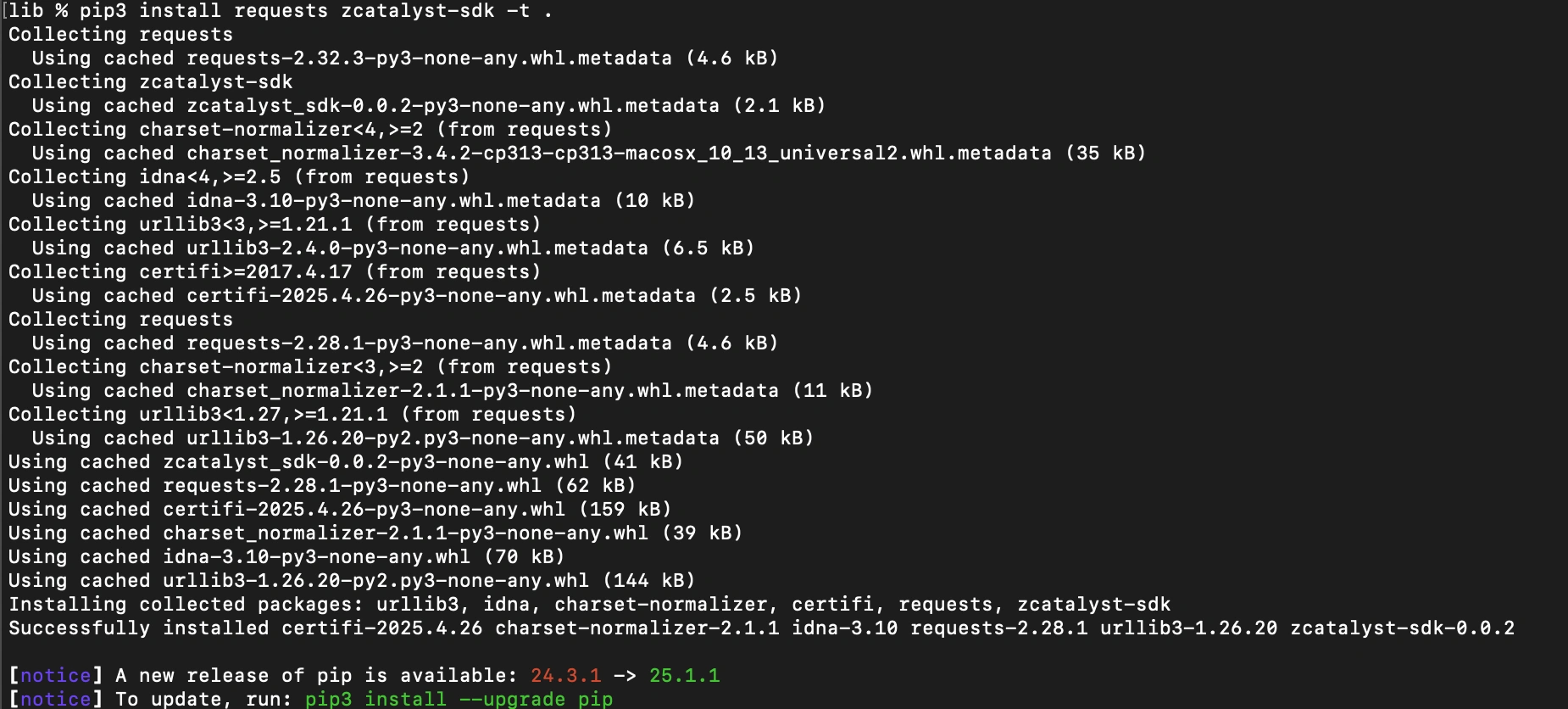

Our function will require requests library and Catalyst SDK as dependencies for its efficient functioning. To install them, navigate to the function’s directory (functions/Cliq_Notifier) and create a lib folder. Execute the following command from the lib folder:

This will install the dependencies.

Copy the python code and paste it in main.py in the functions/Cliq_Notifier directory of your project, and save the file. You can use any IDE of your choice to work with the application’s files.




main.py



copy












import sys
sys.path.insert(0, 'lib')

import logging
import traceback
import requests
import zcatalyst_sdk

logger = logging.getLogger()

zbooksdomain = "{{YOUR_ZBOOKS_DOMAIN}}"; #Enter your ZohoBooks Domain based on your region
zbooksorg = "{{YOUR_ZBOOKS_ORGANIZATION_ID}}" #Enter your ZohoBooks Organization Id

zcliqdomain = "{{YOUR_ZCLIQ_DOMAIN}}"; #Enter your ZohoCliq Domain based on your region
zcliq_channel_unique_name = "{{YOUR_CHANNEL_UNIQUE_NAME}}" #Enter the unique name of the channel where updates should be posted
zcliq_bot_unique_name = "{{YOUR_BOT_UNIQUE_NAME}}" #Enter the unique name of the bot that will post the messages

zaccountsdomain = "{{YOUR_ZACCOUNTS_DOMAIN}}" #Enter your ZohoAccounts Domain based on your region

def handler(event, context):
    try:
        data = extract_invoice_data(event)
        rows = transform_invoice_data(data)
        request_body = prepare_cliq_request(rows)

        access_token = get_access_token()
        send_to_cliq(request_body, access_token)

        logger.info("Message pushed to channel successfully")
        context.close_with_success()

    except Exception as e:
        logger.error("An unexpected error occurred:\n%s", traceback.format_exc())
        context.close_with_failure()


def extract_invoice_data(event):
    event_payload = event.get_raw_data()
    data = event_payload.get("data")
    rows = [invoice for invoices in data for invoice in invoices]
    return rows


def transform_invoice_data(rows):
    for row in rows:
        invoice_id = row.get("Invoice Id")
        row["Link"] = f"https://{zbooksdomain}/app/{zbooksorg}#/invoices/{invoice_id}"
        del row["Invoice Id"]
    return rows


def prepare_cliq_request(rows):
    request_body = {
        "slides": [{
            "type": "table",
            "data": {
                "headers": ["Customer", "Invoice Number", "Amount", "Paid On", "Link"],
                "rows": rows
            }
        }],
        "text": "Here are the invoices marked as Paid in the last hour:"
    }
    return request_body


def get_access_token():
    app = zcatalyst_sdk.initialize()
    connector_config = {
        "CliqConnector": {
            "client_id": "{{YOUR_CLIENT_ID}}", #Enter your Client ID
            "client_secret": "{{YOUR_CLIENT_SECRET}}", #Enter your Client Secret
            "auth_url": f"https://{zaccountsdomain}/oauth/v2/token",
            "refresh_url": f"https://{zaccountsdomain}/oauth/v2/token",
            "refresh_token": "{{YOUR_REFRESH_TOKEN}}" #Enter your Refresh Token
        }
    }
    connector = app.connection(connector_config).get_connector("CliqConnector")
    access_token = connector.get_access_token()
    return access_token


def send_to_cliq(payload, access_token):
    cliq_channel_url = f"https://{zcliqdomain}/api/v2/channelsbyname/{zcliq_channel_unique_name}/message?bot_unique_name={zcliq_bot_unique_name}"
    headers = {
        "Content-Type": "application/json",
        "Authorization": f"Zoho-oauthtoken {access_token}"
    }

    response = requests.post(cliq_channel_url, headers=headers, json=payload)
    response.raise_for_status()


View more


The Event function is now configured.
