Configure the Event Function

Let us now configure the event function Cliq_Notifier, which automatically sends a message to a Zoho Cliq channel. This message will include the invoice details of new customers who have successfully completed their payment. The function will be executed when it is triggered by Catalyst Signals.

The functions directory, functions/Cliq_Notifier contains:

• The index.js main function file
• The catalyst-config.json configuration file
• Node modules
• package.json and package-lock.json dependency files

You will be adding code in the index.js file.

Our function will require axios package as a dependency for its efficient functioning. axios is a promise-based HTTP client that we will use to send asynchronous HTTP requests to the Cliq API endpoint to post messages.

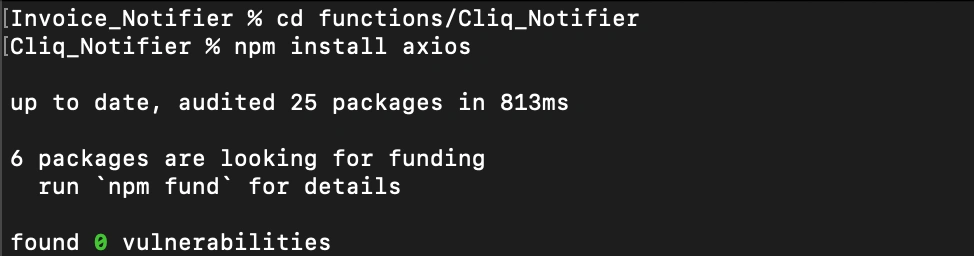

To install axios, navigate to the Node function’s directory (functions/Cliq_Notifier) and execute the following command:

This will install the module.

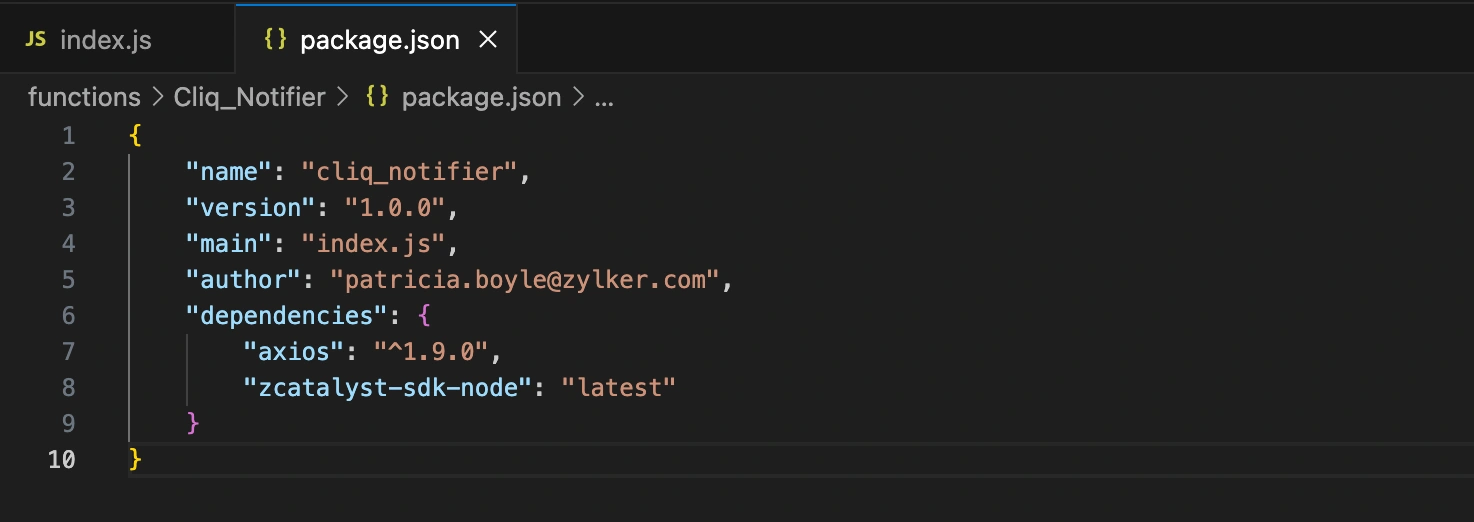

This will also update the Package.json file with axios dependency as shown in this image.

Copy the Node.js code and paste it in index.js in the functions/Cliq_Notifier directory of your project, and save the file. You can use any IDE of your choice to work with the application’s files.




index.js



copy











         const axios = require('axios');
const catalyst = require('zcatalyst-sdk-node');

const ZBOOKSDOMAIN = "{{YOUR_ZBOOKS_DOMAIN}}"; //Enter your ZohoBooks Domain based on your region
const ZBOOKSORG = "{{YOUR_ZBOOKS_ORGANIZATION_ID}}" //Enter your ZohoBooks Organization Id

const ZCLIQDOMAIN = "{{YOUR_ZCLIQ_DOMAIN}}"; //Enter your ZohoCliq Domain based on your region
const ZCLIQ_CHANNEL_UNIQUE_NAME = "{{YOUR_CHANNEL_UNIQUE_NAME}}" //Enter the unique name of the channel where updates should be posted
const ZCLIQ_BOT_UNIQUE_NAME = "{{YOUR_BOT_UNIQUE_NAME}}" //Enter the unique name of the bot that will post the messages

const ZACCOUNTSDOMAIN = "{{YOUR_ZACCOUNTS_DOMAIN}}" //Enter your ZohoAccounts Domain based on your region

module.exports = async (event, context) => {
    try {
        const rows = transformEventData(event.getRawData());
        const requestBody = buildCliqRequestBody(rows);
        const accessToken = await getAccessToken(context);
        await sendToCliq(requestBody, accessToken);
        console.log("Message pushed to channel successfully");
        context.closeWithSuccess();
    } catch (error) {
        console.error('Error occurred:', error);
        context.closeWithFailure();
    }
};

function transformEventData(rawData) {
    let rows = rawData.data.flat();
    for (let row of rows) {
        const invoiceId = row["Invoice Id"];
        delete row["Invoice Id"];
        row["Link"] = `https://${ZBOOKSDOMAIN}/app/${ZBOOKSORG}#/invoices/${invoiceId}`;
    }
    return rows;
}

function buildCliqRequestBody(rows) {
    return {
        slides: [{
            type: "table",
            data: {
                headers: ["Customer", "Invoice Number", "Amount", "Paid On", "Link"],
                rows: rows
            }
        }],
        text: "Here are the invoices marked as Paid in the last hour:"
    };
}

async function getAccessToken(context) {
    const app = catalyst.initialize(context);
    var connector = app.connection({
            CliqConnector: {
                client_id: "{{YOUR_CLIENT_ID}}", //Enter your Client ID
                client_secret: "{{YOUR_CLIENT_SECRET}}", //Enter your Client Secret
                auth_url: `https://${ZACCOUNTSDOMAIN}/oauth/v2/auth`,
                refresh_url: `https://${ZACCOUNTSDOMAIN}/oauth/v2/token`,
                refresh_token: "{{YOUR_REFRESH_TOKEN}}" //Enter your Refresh Token
            }
        })
        .getConnector('CliqConnector');
    return await connector.getAccessToken();
}

async function sendToCliq(body, accessToken) {
    const cliqChannelURL = `https://${ZCLIQDOMAIN}/api/v2/channelsbyname/${ZCLIQ_CHANNEL_UNIQUE_NAME}/message?bot_unique_name=${ZCLIQ_BOT_UNIQUE_NAME}`;
    const headers = {
        'Content-Type': 'application/json',
        'Authorization': 'Zoho-oauthtoken ' + accessToken
    };

    const response = await axios.post(cliqChannelURL, body, { headers });
}


View more


The Event function is now configured.
