Create Custom modules in CRM

Modules in Zoho CRM, let you categorize and track various aspects of your business. We will be creating two custom modules namely EcomProducts and Orders for storing the product inventory and the orders placed respectively. You can learn more about custom modules from the CRM documentation.

To create a custom module in CRM, follow these steps:

1. Login to your Zoho CRM account.

2. Click Setup in the top right corner of the dashboard as shown in the screenshot below, and under the Customization section, click Modules and Fields.

3. Click New Module.

EcomProducts

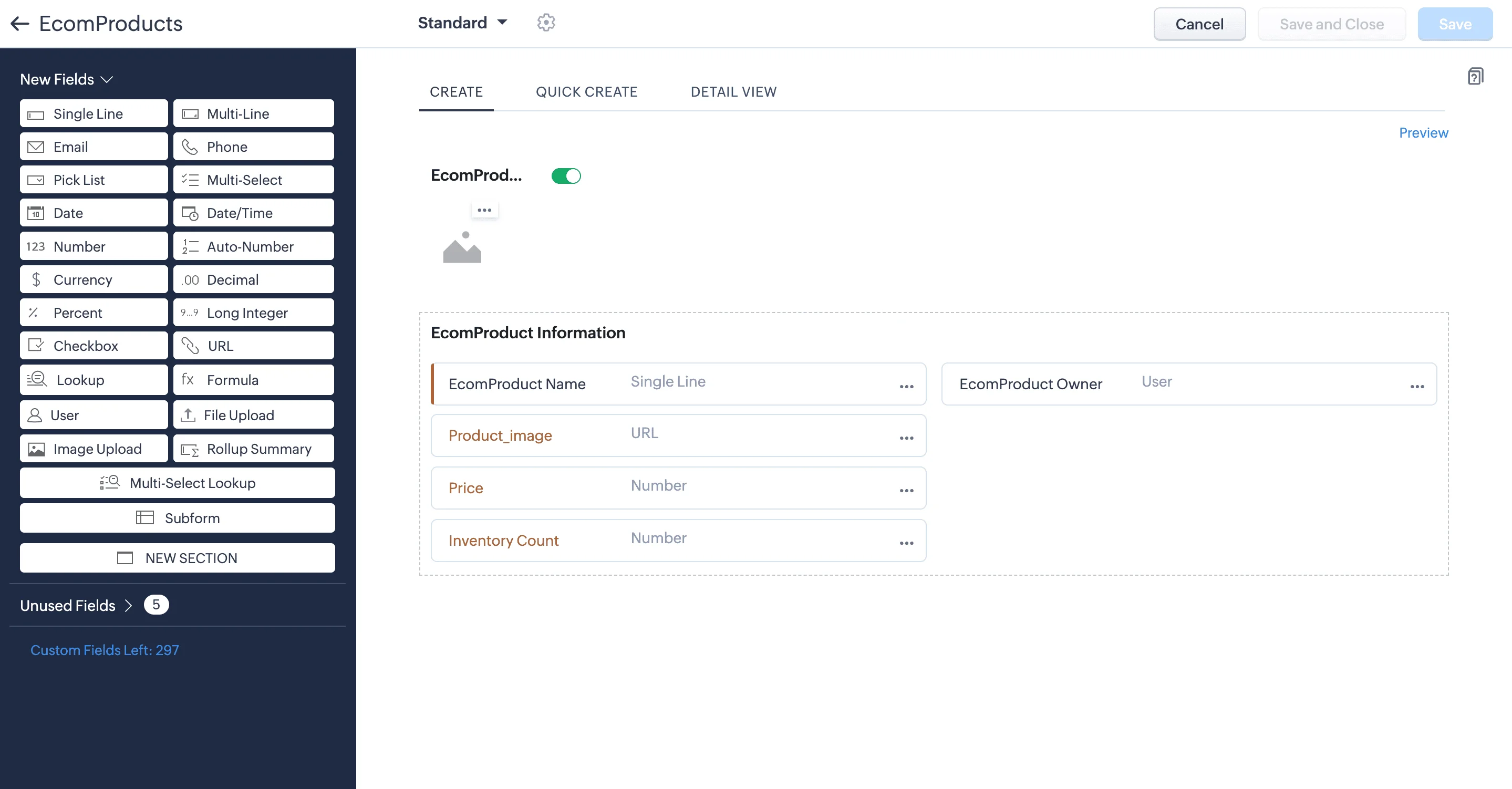

This module is used to store the details of various products available in the ecommerce online store. Please make sure to add the fields given below for the EcomProducts custom module.

After you add the fields, click Save.

Provide the module name as “EcomProducts” and select the module permission as Administrator as shown in the screenshot below.

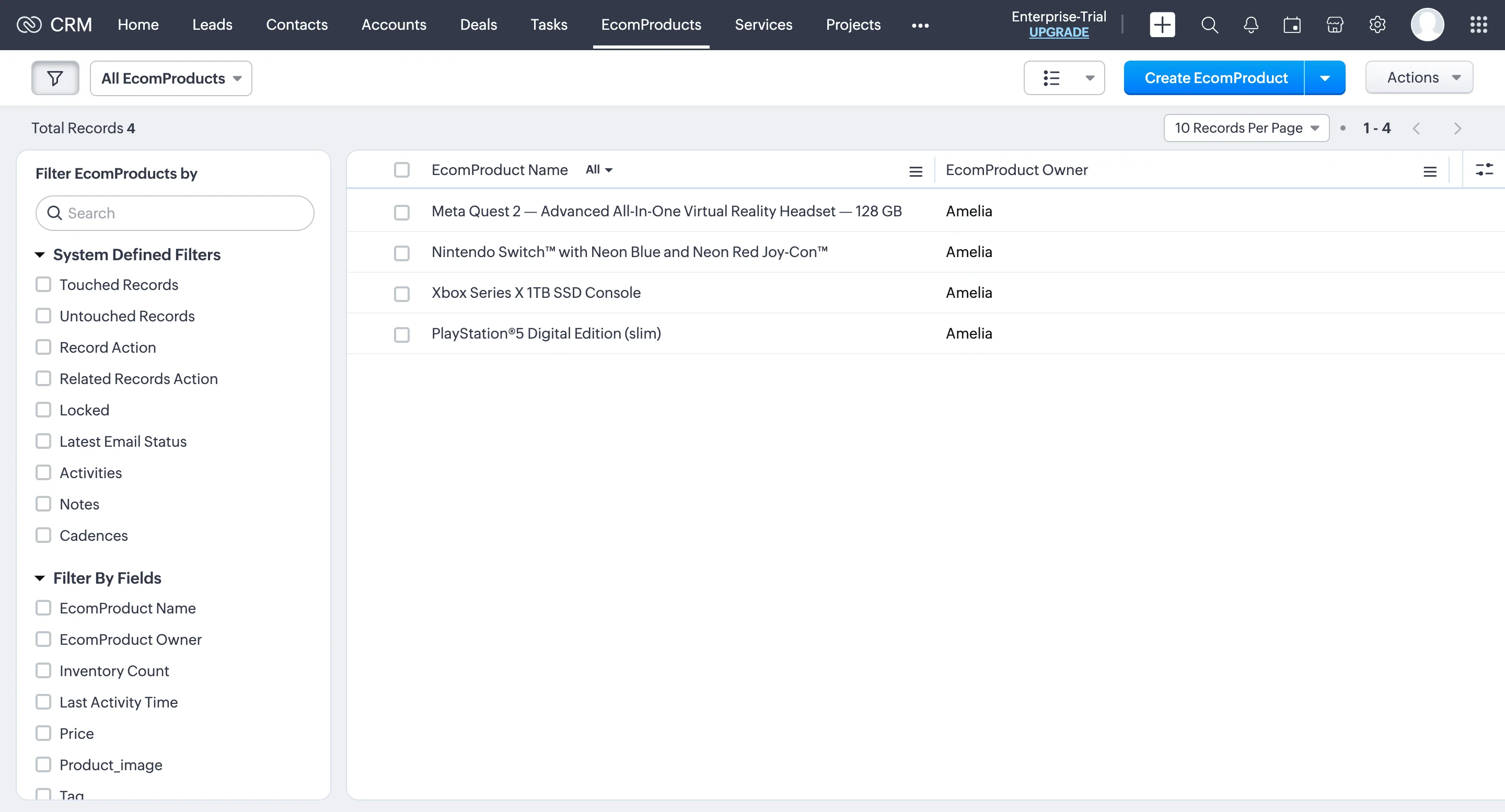

Now, you can create any number of products by adding them as records in the module.

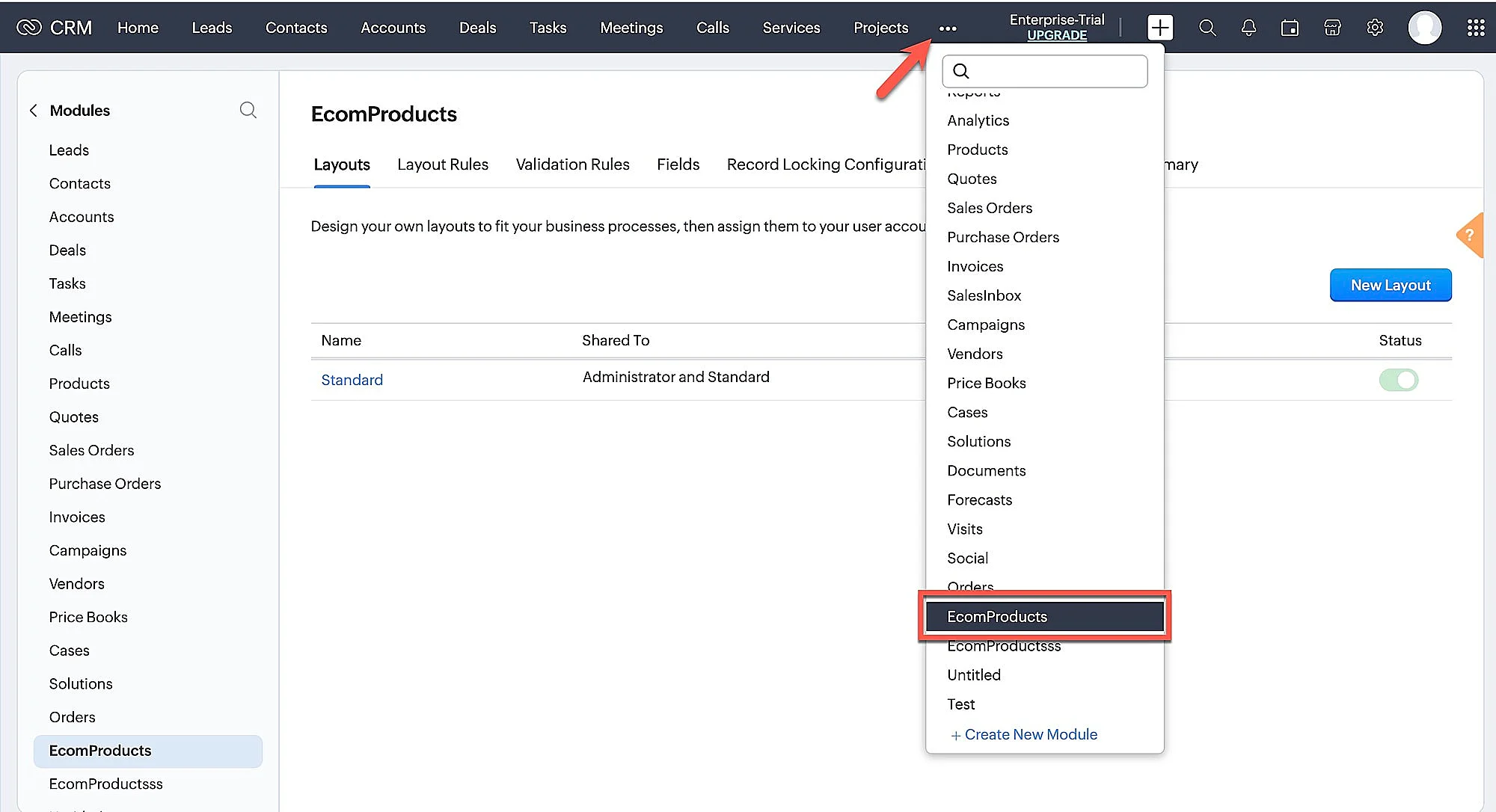

Navigate back to the modules page, and click on Ecomproducts from the menu as shown in the screenshot below.

Click on Create EcomProduct.

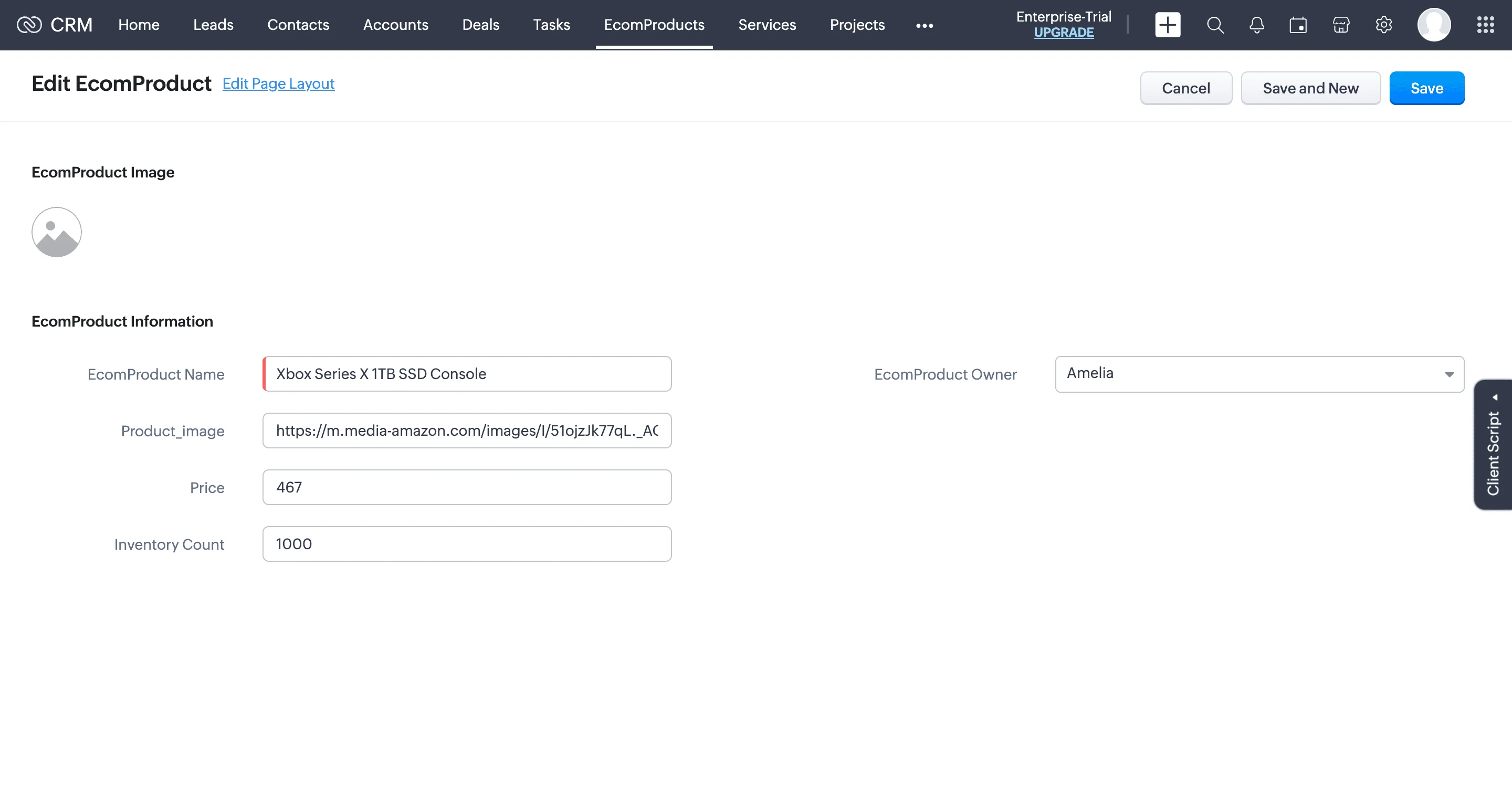

Provide the values for all the fields and click Save.

Orders

This module is created to store the order details of your ecommerce online store. Create this new module similarly mentioned before and name it “Orders”. You can then configure the fields listed below for this custom module :

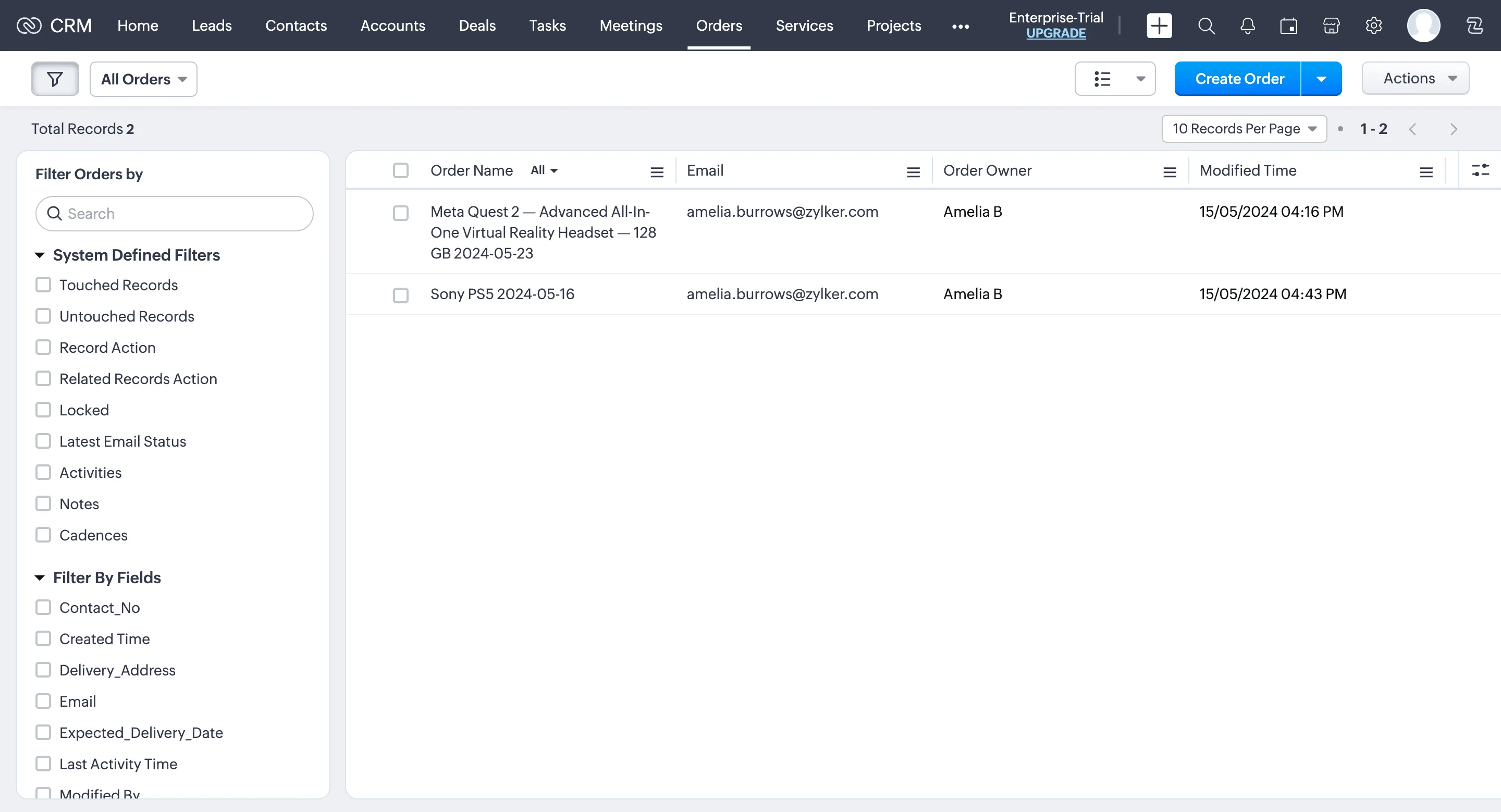

Whenever the user places an order, by conversing with the bot an entry will be automatically made in this module, i.e., the record will be created.

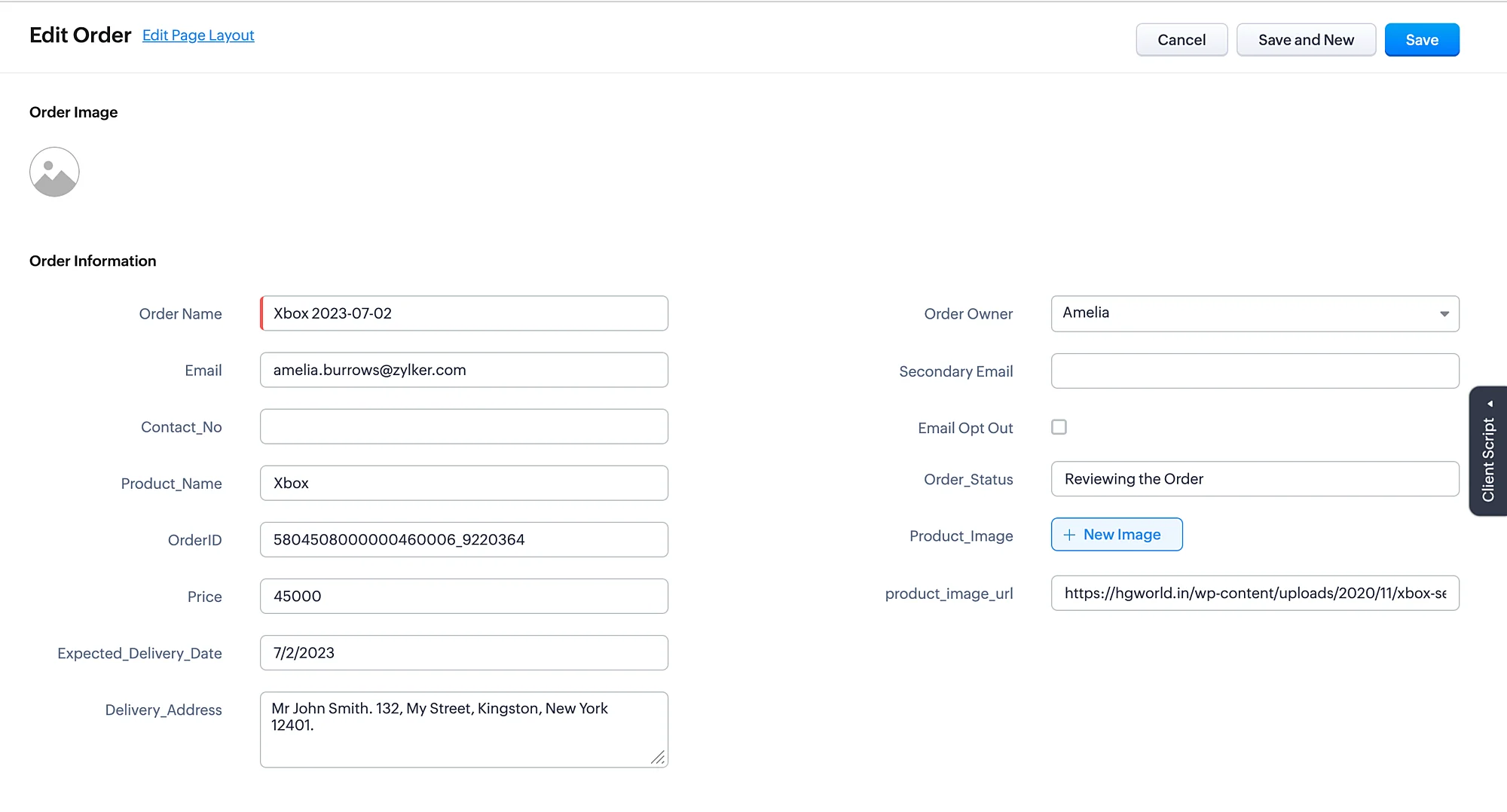

The record details will appear as follows:
